NM Jaw Coupling Manufacturer – Reliable Flexible Shaft Couplings for Industrial Drive Systems

What an NM flexible rubber coupling does

An NM coupling joins a driving shaft and a driven shaft through two metallic hubs and a resilient ring. The ring in the supplied EVER-POWER catalogue is NBR rubber arranged around the hub jaws. It transmits torque while cushioning shock and damping torsional vibration. The same flexible interface can tolerate the limited radial and angular displacement stated for each size, but good installation still aims for accurate shaft alignment.

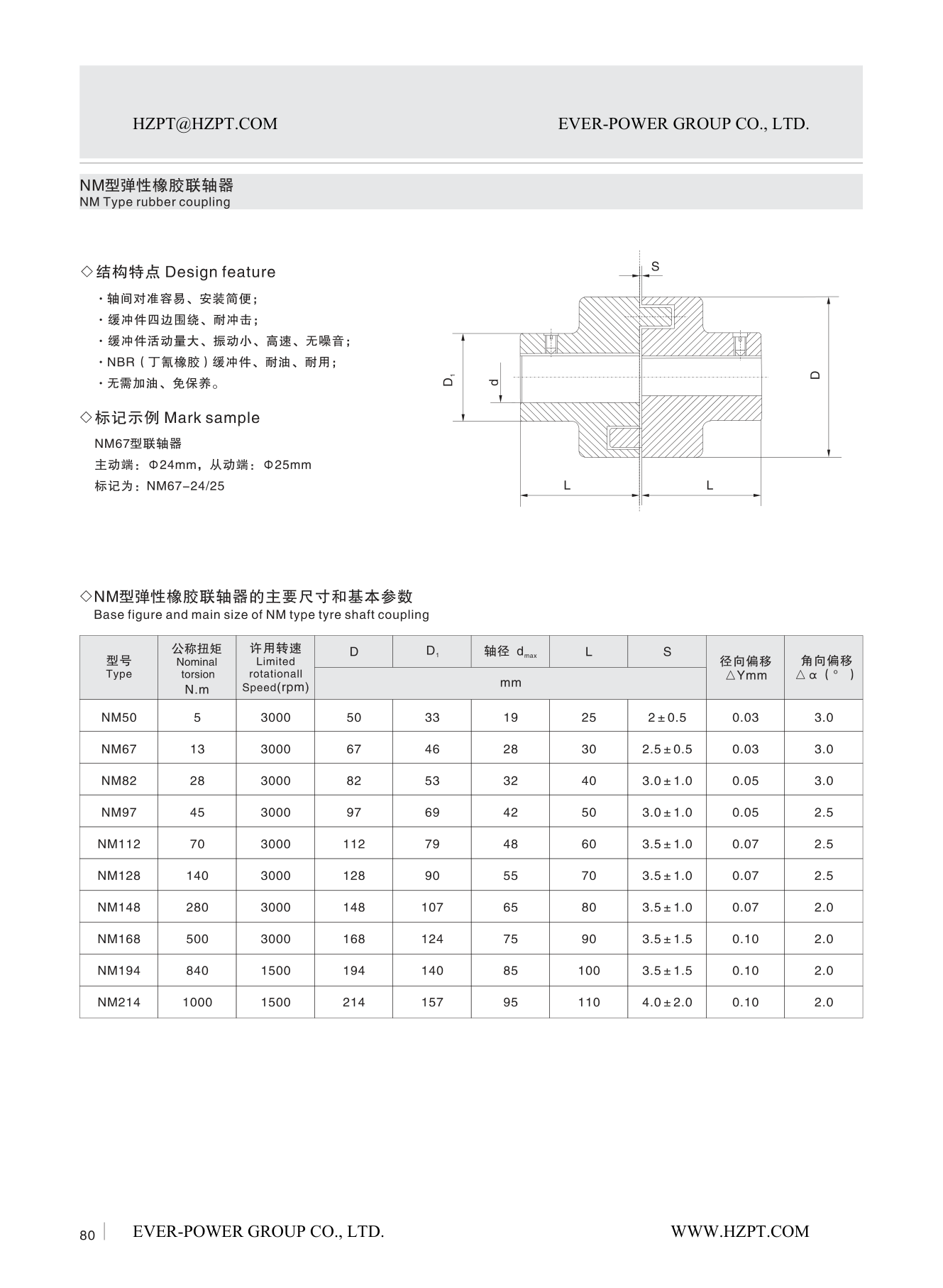

The documented range spans NM50 to NM214, nominal torque from 5 to 1000 N·m, maximum shaft diameters from 19 to 95 mm and catalogue speed limits of 1500 or 3000 rpm. These values define a comparison range, not an automatic motor-size schedule. A buyer must calculate or obtain design torque, account for the machine's duty, confirm both shafts and review temperature, chemicals, starts and peak loads.

EVER-POWER supports manufacturer, supplier, wholesale and OEM enquiries for NM couplings. Custom bore and keyway requests should include shaft drawings and fit requirements. The quotation must confirm hub material, flexible-ring compound details, machining, coating, balancing and inspection documents where needed. This evidence-led boundary is more useful than a broad claim because it tells engineers exactly what is known and what still needs approval.
